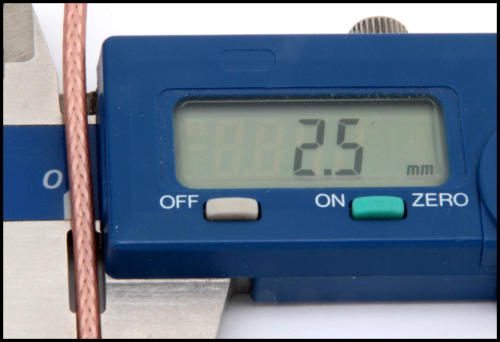

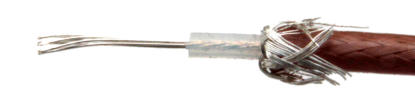

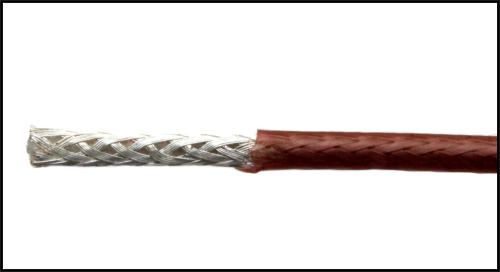

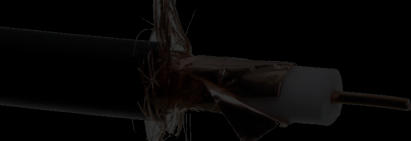

RG 316 U: ein 50 Ohm PTFE-Koaxialkabel Ø 2,5 mm
 a PTFE-coaxcable z = 50 Ohm Ø 2,5 mm

Bild 1

Bild 2

Bild 3

Datenblatt des PTFE-Kabels RG 316
datasheath of RG 316 - PTFE-coaxcable

Innenleiter

center conductor
Stahldraht, Cu-plattiert,
versilbert, 7 x 0,17 mm

steel, Cu-plated, silver plated, 7x0,17 mm
Isolation
insulation
1,52 mm PTFE ±0,1
Außenleiter
outer conductor
CU-Geflecht, versilbert
cu-braid, silver plated
Mantel
sheath
2,49 mm FEP ±0,1
Elektrische Eigenschaften
electrical characteristics
Wellenwiderstand
impedance
50 Ohm ± 2
Kapazität
capacity
94 pF/m
Verkürzungsfaktor  (v/c)
velocity ratio   (v/c)
0,7
Dämpfung attenuation @ 20°C      dB / 100 m

10 MHz

      8,2 dB

14 MHz

      10 dB

28 MHz

      17 dB

50 MHz

    19,2 dB

100 MHz

    28,7 dB
400 MHz     64,3 dB
1000 MHz   104,8 dB
3000 MHz   209,2 dB
Gleichstromwiderstand  Innenleiter  270 Ohm/km
resistor DC inside                     270 Ohm/km
              outside Außenleiter   40 Ohm/Km
Mechanische Eigenschaften
mechanical characteristics
Biegeradius min.
bending radius
15 mm
Gewicht
weight
18,1 kg/km
Kupferanteil
copper content
8,0 km/km
Temperaturbereich
temperature range
-50°C bis 200°C
